Heat pipe

Product Overview

Excellent thermal conductivity solves heat generation problems
Fully customizable specifications are available, including bending and crushing processing and modularization.

A heat pipe is a heat transfer device that uses the latent heat of evaporation and condensation, and is capable of transferring large amounts of heat with a small temperature difference.

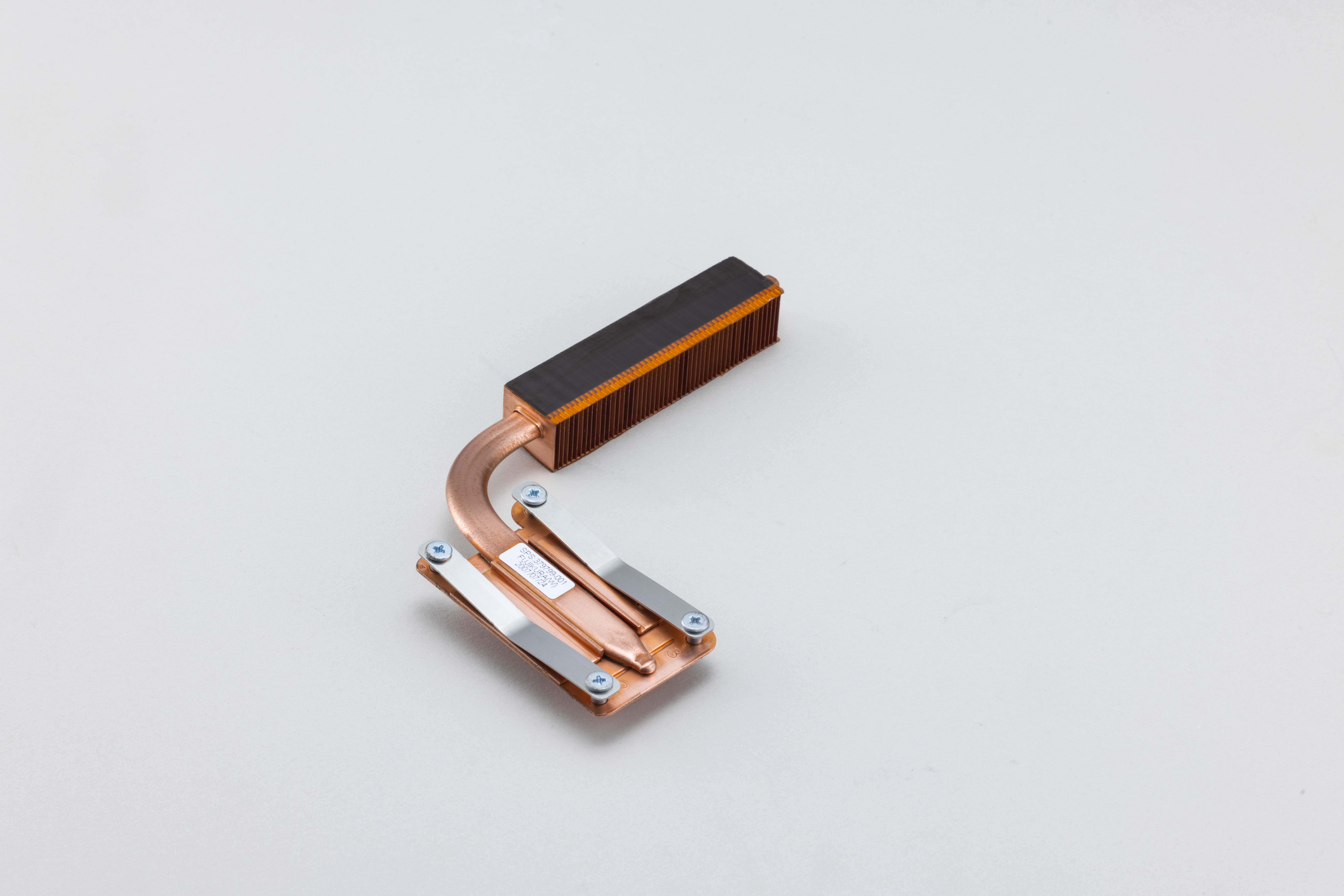

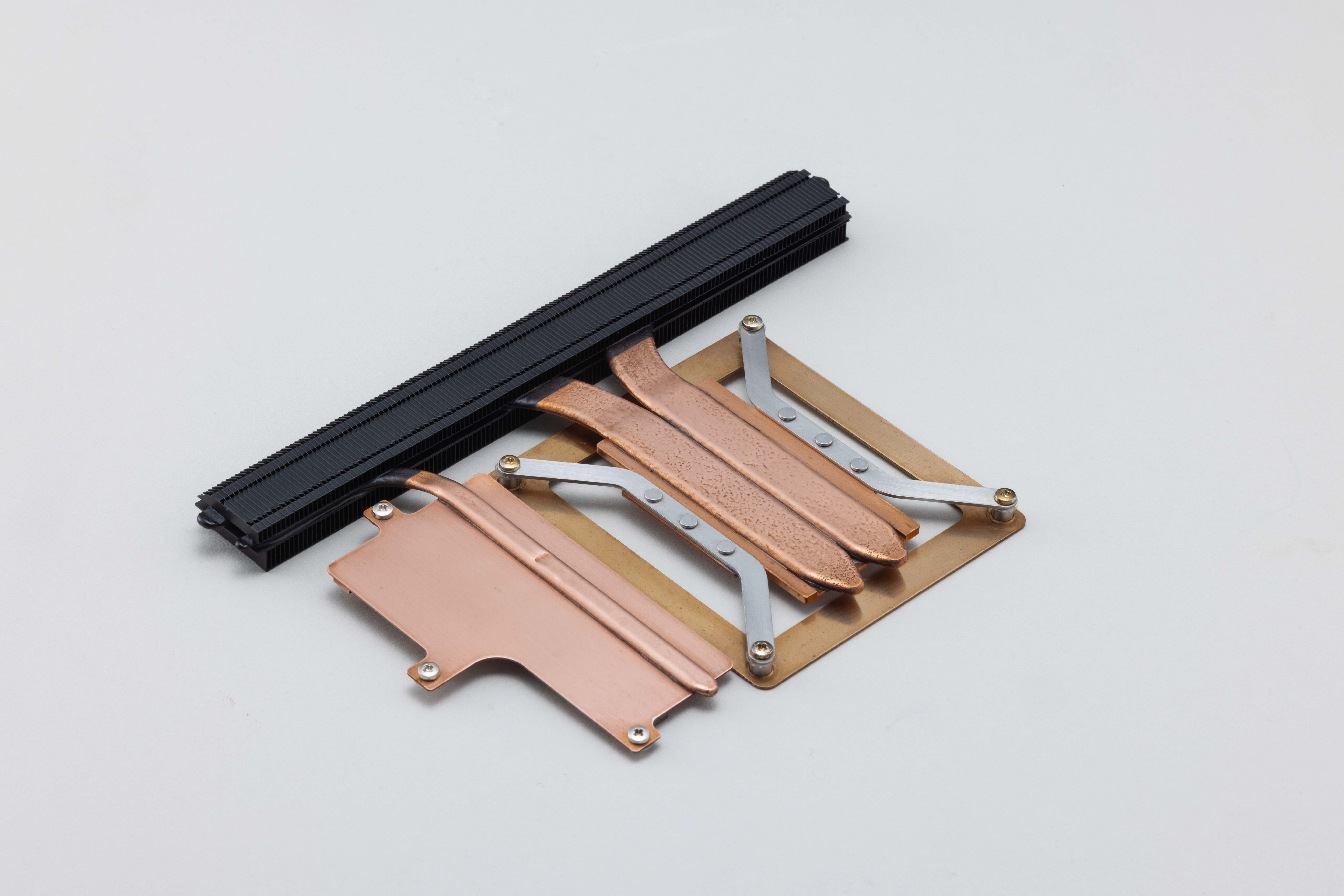

It is also possible to supply it as a cooling module equipped with a heat pipe, heat receiving plate, fins, fan, etc.

Strong Point/Feature

Excellent thermal conductivity
Fast thermal response
High temperature uniformity
Great design freedom
Maintenance-free and zero running costs
Lightweight and compact

Example of heat pipe thermal performance (maximum heat transfer rate Qmax)

The table shows the maximum heat transport rate Qmax (W) at the effective length Leff for each size and compression thickness.

Thickness after crushing: t=1.0mm

Thickness after crushing: t=1.0mm
Original outer diameter D [mm]	Width [mm]	Qmax・Leff [Wm]	Leff [mm]	50	75	100	125	150	175
4mm	5.84	0.96	Qmax [W]	19	13	10	8	6	5
5mm	7.43	1.2		24	16	12	10	8	7
6mm	9.15	1.68		34	22	17	13	11	10

Thickness after crushing: t=1.5mm

Thickness after crushing: t=1.0mm
Original outer diameter D [mm]	Width [mm]	Qmax・Leff [Wm]	Leff [mm]	50	75	100	125	150	175
4mm	5.84	0.96	Qmax [W]	34	22	17	13	11	10
5mm	7.43	1.2		50	34	25	20	17	14
6mm	9.15	1.68		67	45	34	27	22	19

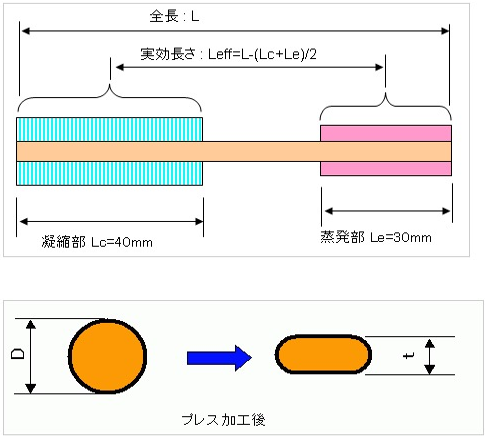

Maximum heat transfer rate (Qmax) evaluation conditions

Straight heat pipe (L=150mm), according to Fujikura standard test method.
