Why choose Fujikura?

Fujikura's extensive technology platform has enabled us to create high-performance, high-quality fiber lasers.
As a result, many customers are choosing Fujikura's fiber lasers.

High power laser diode module

Figure 1. Light output power of laser diode module

World's highest output power*

High power semiconductor laser module as a pumping light source is indispensable for realizing high power fiber laser products. Although diode laser device with wider range of emitting region is effective for that realization, concentrating such laser light into the fixed fiber core diameter becomes difficult. Fujikura has developed an accurate fiber-alignment technology for small-sized optical components to bundle lights generated from multiple semiconductor lasers and align them into an optical fiber with low loss. In addition to that, an adoption of polarization synthesis technology makes it possible to achieve the world's highest output power of 310W.

*Fujikura researched as of November 2016.

Laser power stability

Figure 2. General case fiber laser

Laser power instability issue

Laser back reflection that is generated when shedding laser lights on the target material induces oscillation instability inside fibers, which also produces laser output power instability accordingly. Volatile laser output deeply affects the process and finish condition. Figure 2 describes difference-observation data between laser output power and back reflection light emitting from target material. Reflection level increases around the blue arrow area where laser output power decreases and becomes volatile.

Figure 3. Fujikura fiber laser

Stable laser emission by minimizing back reflection light

Figure 3 depicts the relation between laser output and back reflection light in the case of Fujikura fiber laser. Reflection light level arises at the red arrow point but, on the other hand, laser output level is not affected unlike the case above, which means that Fujikura fiber lasers exercise its ability to stabilize laser oscillation despite the back reflection.
Fujikura products are equipped with the originally structured optical fiber to control adverse effect of reflection inside the optical circuit including such specialty fiber. Reflection-free, enhanced processing could be a priority factor in choosing fiber laser products, which is also one of the reasons why Fujikura is favored.

Figure 4. Non-linear component controlled by large-core multimode fiber

Extended long-operating output power stability

Life of fiber is directly linked to life of laser in a fiber laser system. Optical fibers used for lasers had an typical issue called 'photodarkening' by which the laser output decreases dramatically in a short time. Although the mechanism behind the issue has not been academically clear, Fujikura has pursued the exact root cause of photodarkening as much as possible.
As a result, a specialty optical fiber for fiber laser system, in which its feature stays put even after being exposed to intense light for a long period of time, was successfully developed and put into our fiber laser product lineups.

Integrity and reliability

Figure 5. Example of SRS application in pulsed fiber laser (Raman shifter)

In-house key device manufacturing and original structure to control optical feedback

Key devices such as pump laser, fiber coupler, gain fiber and optical isolator has a decisive influence over reliability and integrity of a fiber laser. Those components are all developed in-house and produced under strict quality control as Fujikura fiber laser products are seen as highly reliable. Superior reliability is supported not only by quality control but also by enhanced technology to protect optical device from damage.
Especially, when intense pulsed optical feedback returns to the main oscillator or power amplifier, optical fibers and other constituent devices are damaged. Fujikura's one-of-a-kind feedback control structure called 'Raman shifter' derived from SRS (Stimulated Raman Scattering) , which is one of non-linear optical effects, is utilized to mitigate such damages.

Originally structured pump combiner protects pump lasers

When optical feedbacks within fiber lasers occur, back reflection light propagates to every corner and finally reaches to pump lasers which will then be fatally damaged. In order to protect the pump lasers from reflection lights, Fujikura introduced a pump combiner with a uniquely developed structure.
The proprietary combiner minimizes diffusion of returning back reflection lights and prevent them from connecting with optical fibers directly linked to pump diodes. Our broad technology platforms realized the protection mechanism.

Unprecedented vertical irradiation by back reflection controlling technology

Fujikura firstly delivered fiber lasers that can vertically irradiate the target materials with laser lights enabled by its unique technologies to control back reflections. Needless to say, the most efficient way of material processing is to irradiate lasers paleways against the target, however, the conventional fiber lasers have no other choices to shed light on the materials with some angles because of the optical feedback issue of pump laser deteriorations. Fujikura fiber lasers applied its own technologies to control back reflections and minimize lights back to pump lasers, thus making it possible for users to think flexible and efficient fiber laser processing.

Cutting demo with vertical irradiation - Cu/5mm/2kW

Welding demo with vertical irradiation - Cu/3mm/3kW

Vertical irradiation advantage 1 – Machining time reduction

Conventional lasers (i.e. YAG lasers, fiber lasers) need to irradiate the target with angle in order to minimize the effect of laser light reflection. In case of angled laser irradiation, multiple stage operations or laser head operations by the control robot are necessary to maintain constant entry angle toward the target materials.

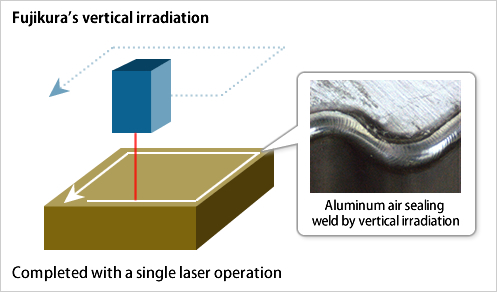

Fujikura’s fiber laser achieves vertical laser irradiation toward target with its unique technology to reduce the effect of laser light reflection. Machining time is dramatically reduced because working process is basically completed with a single laser operation. Working accuracy is also improved since stable laser vertically irradiates the material. On top of that, the entire system cost can also be saved because additional investment in complicated stage operation or laser head angle control is not needed.

Vertical irradiation advantage 2 – Beautiful quality finish

Although it is not operationally easy for conventional angled laser irradiation to finish weld face without shut, Fujikura’s fiber laser makes it possible to deliver beautiful seamless welding face with its unique vertical irradiation. Fujikura’s fiber laser is strongly recommended for the welding application to meet rigorous quality requirement.

Shock and vibration testing

Accumulated technical know-how and standards in the telecom sector

Fujikura fiber lasers come to customer's choice because of their environmentally-resistant feature. The average annual failure rate on all shipped fiber lasers stays at about 1% in spite of the fact that fiber lasers are usually used at production sites where conditions can be extremely tough. It can be said 'trouble-free fiber lasers' compared to other choices.
There is a fact behind this excellent performance that Fujikura has historically developed telcordia compatible products to which strict design standards applied.
Not only the failure rate but temperature stability also demonstrates its environment resistance with the thermal design excellence on optical circuit combined with semiconductor laser modules and the unique heat exchange structure. For instance, our pulsed fiber lasers provide exceptionally broad operation temperature ranging from 0 to 45 degrees celsius.

A comprehensive support system

QBH connector on-site replacement

Fujikura designs and manufacturing its own components with unique structures that enable on-site repairs of delivery fibers, which frequently break down and need replacing at manufacturing sites. Our customer support engineers repair and maintain equipment at customers' factories, and we aim to provide precise, attentive service by proposing the best solution to meet customer needs.

Customer Support

We fully support pre-investment customers through clarifying machining conditions to develop a desired process or through reviewing sample processing to take full advantage of our Customer's Lab facility.
Maintenance support is one of the most strengthened services that Fujikura provides. We are mainly focused on pre-emptive steps and recurrence preventions on a continuous basis.
